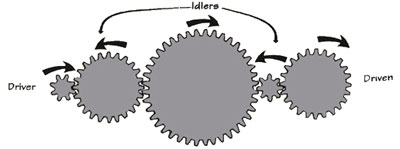

The diagram below shows five meshed gears. The first gear that the force is applied is called the driver gear . Notice that the arrows show how the gears are turning. Every other gear is turning clockwise . The very last gear is the driven gear. All of the gears in between are called idlers .
